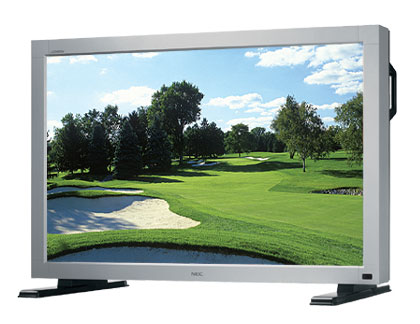

NEC-Mitsubishi LCD TV
NEC-Mitsubishi LCD4000E-SLV 40" LCD Display
using our Recommended Reseller Finder
See all NEC-Mitsubishi LCD Televisions
The LCD3000 NEC-Mistsubishi LCD TV sports wide viewing angles at 170 degrees horizontal and 170 degrees vertical. Its low 25 ms response time produces crisp, clear video. The LCD3000 features digital and analog interfaces, a horizontal frequency range of 31.5 to 75 kHz in analog mode and 31.5 to 48.4 kHz in digital mode, and a vertical frequency range of from 58 to 62 Hz. It has a contrast ratio of up to 350:1, and can be used with cables of up to 100 meters in length with no degradation of picture quality. Additionally, the display includes composite-video, component-video, and S-video interfaces and two RCA stereo audio inputs. It also has an audio output for optional 2 x 7 watt speakers The LCD3000 LCD TV from NEC-Mitsubishi uses 30 percent less energy and is 40 percent lighter than similar-size plasma displays, making it both energy-efficient and easy to install and transport. It was designed to comply with all current standards for VESA mounting for large-format displays, and the housing can easily be removed for incorporation into existing spaces.
NEC-Mitsubishi LCD Specifications
Screen Size 40" diagonal Screen Aspect 16:9 Contrast Ratio 600:1 Brightness 450cd/m2 Pixel Pitch 0.681 mm hSync 31.5-75 kHz vSync 58-62 Hz Color System [not published] Data Signals VGA, SVGA, XGA (SXGA and UXGA compressed) TV Scan Lines 480i, 480p, 720p, 1080i
Input Terminals
Composite Video 1 (RCA) S-Video 1 (4-pin mini DIN) RGB Component Video 1 (BNC x 5) VGA RGB Signal 1 (15-pin mini d-Sub) DVI Digital Input 1 Stereo Audio In 2 (RCA L/R) Serial Control (RS232C) 1 (9-pin mini d-Sub)
Output Terminals
Stereo Audio 1 (RCA L/R)
LCD TV Accessories
Audio Amplifier 7W x 2 Speakers Optional Mounting Options Table Stand Included Also Included:
AC power cord, user manual, wireless remote control, batteries, 15-pin RGB cable, CD-ROM
Dimensions and General Specs.
Power Supply 100-120V, 200-240V @ 50-60Hz Power Consumption 235 Watts Dimensions 37.4" x 23.8" x 5.6" Dimensions w/ Stand [not published] Weight 57.30 lbs. FCC Class FCC Class B, Home Use
Key Features of the NEC-Mitsubishi LCD4000E-SLV 40" LCD TV Monitor
- High brightness 1280 x 768 LCD TV Display Panel
- Virtually eliminates the potential for permanent image burn-in, contributing to optimal screen performance and longer monitor life
- XtraView technology allows for 170° wide-angle viewing
- CableComp automatic long cable compensation prevents image quality degradation caused by long cable lengths
- User-friendly, efficient design features the VESA-standard mounting
- Automatic black level adjustment regulates grayscale images for optimal picture quality
- Reduced reflection and glare in high ambient light environments
- Optional detachable speakers deliver an enhanced multimedia experience with amazing sound quality
- Low power consumption conserves energy and leads to a lower total cost of ownership
- Rapid Response technology delivers virtually uninterrupted, undistorted viewing of full-motion video
- Picture-in-picture (PIP) capability displays PC and video input simultaneously
- On Screen Manager (OSM®) puts you in complete control of display setting adjustments
- 1-year limited parts and labor warranty and 24/7 customer service and technical support
NEC-Mitsubishi LCD Display Technology
Providing visual display solutions to a wide variety of users for many years, NEC-Mitsubishi LCD televisions and monitors have set the standard for flat-panel technology and continue to offer new ways to enhance visual experiences. Our visual solutions provide users with a diverse range of options to help them see their digital world more clearly and support them in achieving their goals.
Building on this tradition of quality and innovation, The NEC-Mitsubishi LCD3000 LCD television features the latest in advanced LCD technologies and creates new options for those in the information display market. As one of the largest screen size LCD television displays commercially available, these models carry with them all of the benefits users have come to value in NEC’s smaller-sized LCD displays. These benefits now can be enjoyed in a variety of information display applications, including conference rooms, public information kiosks, retail signage, financial exchanges, airports and trade show exhibits. The screen performance of the Information Display Series brings ideas to life, capturing the attention and imagination of viewers and ensuring that messages reach audiences with maximum clarity and impact.
Superior screen performance. The LCD4000 and LCD3000 take advantage of the many display technologies that have made LCD television monitors so popular over the years, and deliver them through expansive screens featuring a wide aspect ratio. The monitors’ 1280 x 768 (WXGA) resolution optimizes on-screen text, images and video with remarkable precision and clarity, allowing onlookers to clearly view presentations, charts, advertisements, pricing and other public display information. Further, these applications can be viewed simultaneously, utilizing the displays’ picture-in-picture capability when using the defined combination of video inputs.
In applications where spectators are situated at various angles in front of the screen or where they are passing by the display, this LCD TV monitor provides an undistorted view of the screen. Using XtraView wide-angle viewing technology, the displays deliver flexible 170° horizontal and vertical viewing angles (85° up, down, left and right) with less glare, reflection and distortion. With a brightness of 450 cd/m2, these displays stand out in the crowd, allowing onlookers to view text and graphics with ease and comfort. Exceptional contrast ratios help the displays deliver amazingly vivid colors and support superior grayscaling. Further, Rapid Response technology allows them to display virtually uninterrupted and undistorted viewing of high-speed, full-motion video without ghosting or image trailing.
Convenience Features
Sized to please. With its spacious screen, the LCD3000 LCD television is ideal for applications that require precise readability and clarity from a distance, such as airports and financial institutions. Filling the gap between flat panels designed for the desktop and those intended for larger venues, the LCD3000 NEC-Mitsubishi LCD TV offers the information display market another option for a variety of visual display needs. It also fills the void left by larger-sized CRT monitors, which are no longer widely available.
With some screen technologies, leaving the display on for a long period of time would permanently burn the image into the screen. As can be noted with phosphor-based public displays, the image would remain permanently "engraved" into the display, rendering it useless. Since these LCD TV displays do not use phosphors in their construction, the potential for permanent burn-in is significantly decreased, thereby contributing to optimal screen performance and a longer life for the displays.
Take control of your monitor. To make remote control and diagnostics easier, the LCD4000 and LCD3000 provide three different methods to manipulate the display— an RS-232 connector, the advanced remote diagnostics and remote control capabilities of the Display Data Channel/Command Interface (DDC/CI), and the handheld IR remote control. By utilizing the inherent power of the PC (a typical source for the display), DDC/CI allows control commands to be sent directly to the monitor through a standard PC system or remotely over an existing network (LAN) by a system administrator.
Achieve consistent, long-distance signals. NEC-Mitsubishi’s exclusive CableComp technology enables users to realize the advantages of long monitor cable lengths without the difficulties and costs normally associated with this type of configuration. In environments such as trading floors, call centers and public signage venues, longer cables enable systems to be centrally located in control rooms far away from users (up to 326 feet / 100 meters), allowing monitor upgrades, service and repairs to be accomplished without interrupting the work or display environment.
Historically, longer monitor cable configurations tended to have limitations, including weakened signals, which resulted in blurred images. Inconsistent red, green and blue cable lengths were also common. This produced uneven signals, thereby drastically reducing display quality.
CableComp technology solves these dilemmas by using a digitized signal delay circuit to automatically compensate for each red, green and blue cable’s length and video signal delay, ensuring sharp image reproduction. CableComp also boosts the VGA video signal to prevent blurred images without the need for costly repeaters.
Get connected. The LCD4000 and LCD3000 feature a number of input connections for maximum compatibility (see Fig. 1). These include a DVI-D connector for digital video signal adapters and a traditional 15-pin mini D-sub connector that is configured for IBM® VGA-compatible adapters, as well as BNC VGA, composite video, component video for HDTV and an S-Video connector. This wide compatibility makes it possible to upgrade adapters or software without having to purchase a new monitor. By accepting analog signal inputs, the monitors can display more than 16 million colors, depending on the graphics card and software being used.
User-friendly, efficient design. As ease of installation is a main concern for the information display market, these displays were designed with light weight in mind, making them simple to transport and install wherever necessary. In addition, with these displays, NEC is on the forefront of mounting technology as the cabinets were designed to meet currently proposed VESA mounting standards for larger-sized public displays, which will be required of all manufacturers in the future. With a uniformly thin frame, the displays’ design is ideal for multi-screen construction for virtually seamless video walls.
Enhance your multimedia experience. Optional multimedia speakers, powered by a built-in 7W x 7W amp, boost the senses during presentations or other display applications. These powerful components easily attach to the vertical sides of the displays, eliminating the need to find additional mounting, wiring or installation solutions.
Simplified control of screen settings. The LCD4000 and LCD3000 feature NEC’s critically acclaimed On Screen Manager (OSM) for precise monitor adjustments. A touch of the convenient controls or the individual remote control activates the OSM, delivering a comprehensive set of adjustments and an expanded display mode with monitor information such as brightness, contrast and color settings. However, for quick and easy setups, a multitude of presets makes these monitors ready to go right out of the box.
Extend your message with ease. Utilizing daisy-chaining capability, these monitors can be linked to one another to display the same image and deliver the same audio—all from a single source. This capability allows you to avoid the hassle and extra costs of using splitters or connecting monitors to multiple sources.
Intelligent power management ensures a smart investment. Utilizing energy-efficient technologies in their design, the displays reduce power consumption and significantly lower the total cost of ownership (TCO). The high-efficiency backlight reduces not only the power consumption but also the heat generation at the front of the screen.
Terminals and Connections
Also includes R/G/B/H/V (BNC x 5) Component Video Output.
