Panasonic TC-20LA1 LCD TV

MSRP: $1,300
Lowest Online Price: $1,079  See all online prices

The Panasonic TC-20LA1 is a vivid example of how far flat-screen LCD technology has come recently. This compact TV delivers picture quality that's absolutely stunning. Connect it to a portable DVD player or game console, and you've got an awesome desktop entertainment system! The built-in Progressive Scan Doubler de-interlaces incoming video signals from your DVD player, VCR, or antenna/cable feed. The progressive picture of the Panasonic LCD panel operates without the scan lines often visible on ordinary TVs, so you'll see a smoother, more seamless picture.

LCD Display Specifications
Screen Size	20" diagonal
Screen Aspect	4:3
Contrast Ratio	400:1
Brightness	450cd/m2
Pixel Pitch	[not published]
hSync	[not published]
vSync	[not published]
Color System	NTSC
Data Signals	(N/A)
TV Scan Lines	480i, 480p

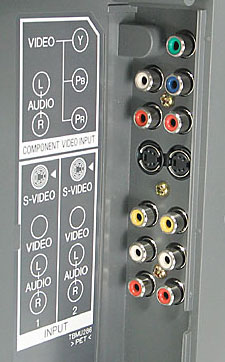

Input Terminals
Composite Video	2 (RCA)
S-Video	2 (4-pin mini DIN)
Component Video	1 (RCA x 3)
Stereo Audio In	3 (RCA L/R)
Output Terminals
Component Video	(RCA)
VGA RGB Signal	(15-pin mini d-Sub)
LCD TV Accessories
Audio Amplifier	3W x 2
Speakers	Built In Speakers
Mounting Options	Table Stand Included
Also Included: Pedestal Stand with adjustable tilt Stereo Speakers included Remote control and User's Manual
Dimensions and General Specs.
Power Supply	100-120V @ 50-60Hz
Power Consumption	[not published]
Dimensions	19.4" x 16.6" x 3.1"
Weight	13.70 lbs.
FCC Class	FCC Class B, Home Use

Key Features of the Panasonic TC-20LA1 20" LCD TV Monitor

• 17" low-reflective Black TFT LCD panel
• 640 x 480 pixel resolution
• built-in 6W stereo speakers
• detachable stand with adjustable tilt
• 4:3 screen aspect ratio
• Progressive Cinema Scan 3-2 pulldown processing
• 3D digital comb filter
• 181-channel NTSC tuner
• MTS stereo reception
• 2 A/V inputs, including:
• 2 rear-panel composite video
• 2 rear-panel S-video
• 1 rear-panel component video
• (compatible with 480i/480p signals)
• RF input for antenna/cable
• mini stereo headphone jack
• remote control
• wall-mountable (VESA standard mounting holes)
• 16-3/4"W x 15-1/8"H x 2-1/2"D (without stand)
• weight: 11.5 lbs. (without stand)
• warranty: 1 year parts & labor
• not intended for computer use

Panasonic TC-20LA1 LCD TV

Ideal for a bedroom, office, or kitchen, Panasonic's latest line of beautifully sleek LCD TVs delivers superb picture quality without gobbling floor space, desk space, or counter space. The TC-17LA1 provides Enhanced Definition TV (EDTV) picture resolution, which means that it can display a 480p signal from a progressive-scan DVD player. Plus, a built-in progressive-scan line-doubler will improve the look of all your standard NTSC signals (antenna, cable, VCR, etc.), resulting in super-sharp images with no visible scan lines.

With its under-3" panel depth, the TC-17LA1 delivers a lot of crystal-clear picture in a little space. And the picture will stay bright and pinpoint sharp year in and year out, thanks robust LCD display technology. If you're a video game fan, here's more good news — with flat-panel LCD, you never have to worry about permanent image burn in!

Intelligent circuitry constantly monitors the signal and adjust the brightness, contrast, and detail levels, giving you optimum picture quality under any conditions! The TC-20LA1 also includes a desktop stand with adjustable viewing angle, and a remote control.

Panasonic LCD Display Technology

3D Y/C Digital Comb Filter: The Motion-Adaptive 3D Y/C digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information. It removes dot crawl and hanging dots both horizontally and vertically.

Enhanced Definition TV (EDTV)
This unit provides Enhanced Definition TV picture resolution, which means that it can display a 480p signal from a progressive-scan DVD player (but not true HDTV signals, which are either 720p or 1080i).

Progressive Cinema Scan
Movie film consists of a series of still images viewed at 24 frames-per-second. On TV broadcasts or videotapes, these images are converted to interlaced signals at 30 frames-per-second. Panasonic LCD TVs detect this conversion and use still-image processing for each individual image to achieve clear, smooth-flowing images with a level of detail that closely approaches that of the original film.

Active Light Control
This circuitry automatically detects the brightness levels of the input signal and adjusts the backlight accordingly in real-time.

Active System Control
This technology dynamically adjusts the video signal according to the image contrast. Working in tandem with Active Light Control, it adds greater brightness to bright scenes and brings more depth to dark scenes.

New LCD AI (Adaptive Brightness Intensifier)
Panasonic's original LCD AI technology uses Active Light Control and Active System Control functions to boost brightness and deliver deeper blacks in scenes with varying contrast. The new LCD AI goes a step further, using a control method that achieves deeper, more lifelike images in scenes where previous AI systems fell short. The result is greater detail, depth and realism.

Convenience Features

Aspect Ratio Switching
This LCD TV allows you to choose the correct aspect ratio - 4:3 or 16:9 (letterbox) - according to the signal input. In TV mode, the aspect mode is set to 4:3, and aspect controls are not available.

Viewing Angle
The TC-17LA1 has a horizontal viewing angle of 160 degrees.

Picture Mode
You can choose from the following picture modes:

• Standard displays standard image
• Cinema ideal for watching movies in a dark room
• Vivid displays a clear screen with contrast between light and dark

Sleep Timer
The sleep timer switches the television off after a specified amount of time. The sleep timer can be set to 30, 60, or 90 minutes.

Audio System Features

Surround Sound:
The phase of the original sound is delayed from a 2-channel source creating a "surround" effect and allowing you to simulate stereo sound even from a monaural source.

Audio Mode
You can choose from the following audio modes:

• Auto automatically adjusts the quiet sounds and loud sounds for ease of listening
• Standard emits the original sound
• Dynamic gives contrast to sound
• Music enhances the high frequencies for programs consisting mainly of music

Artificial Intelligence (Al) Sound Level Control
This feature controls the volume level automatically to prevent wide variations in volume among different TV channels and types of programming.
