Samsung LN46A750

46" Samsung LCD TV Review

Model: Samsung LN46A750
Description: 46" HD LCD
Resolution: 1980 X 1366
Dimensions with Stand: 46.1" X 30.1" X 11.8" (WXHXD)
Dimensions without Stand but with Speaker: 46.1" X 28" X 3.9"
Includes: Non-Detachable Speakers Speakers not detachable but are hidden, table top stand, 3 HDMI inputs
Computer Input: Dsub 15 pin
Color: Black transparent lacquer finish with burgundy Touch of Color.
Power Consumption: 240W
Reviewer: Robert Wiley with Jack Burden
Date: October 2008

INTRODUCTION

The Samsung LN46A750 is a current Fall 2008 LCD TV model. This LCD is next to the top of the lineup for Samsung's current model offerings second only to the LN46A850.

PICTURE QUALITY RATING: 93/100

Test and Optimum Viewing Distance: 12 feet

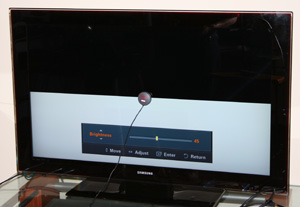

Calibration: The Samsung LN46A750 calibrated very well to D6500K with our Sencore Auto Cal Pro test setup. Following are easy to follow adjustments to help any user dial this TV in. Adjust the backlight setting up for brighter high ambient light rooms and down slightly for low light rooms. Doing so will have minimal impact to the contrast ration and color coordinates.

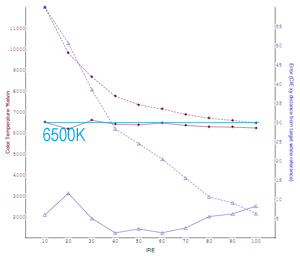

Picture Mode:	Movie	Our post calibration results for the LN46A750 tracked very close to D6500K Adjusting the backlight has very little effect on the contrast
Color Temp:	Warm 2
Brightness:	47
Contrast:	84
Color:	52
Tint:	G50/R50
Sharpness:	10
Backlight:	7
HDMI Black Level:	Low
Digital NR:	No
Other Settings:
Black Adjust:	Off
Dynamic Contrast:	Off
Gamma:	3
Color Space:	Auto
Edge Enhancement:	Off
Color Balance Settings Post Calibration:
Red-Offset:	28
Green-Offset:	25
Blue-Offset:	18
Red-Gain:	15
Green-Gain:	25
Blue-Gain:	20

Contrast Ratio: Contrast ratio for the LN46A750 using an ANSI checkerboard pattern measured a fair result of 249. This TV is fairly dark for an LCD, but the black levels really shine.

Up conversion from 480i and 480p: Color information from this Samsung LCD is natural and realistic and displays extremely well. There is notable motion blur/lag with the LCD regardless whether the 120hz Auto Motion processing is on or off. The jerky effect of the motion lag was evident in Braveheart, Tomorrow Never Dies, and Risky Business. In other words, it was not an anomaly with any one source. This may not be a result of the upconversion though. Overall I thought the upconversion processing was excellent delivering clear sharp images on even the most difficult old DVDs.

Color information from this Samsung LCD is natural, realistic
and displays extremely well

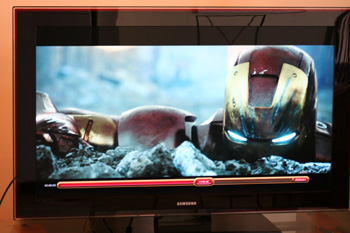

720p/1080i/1080p Picture Quality: Motion Lag continues to be an issue even with HD content. We highly recommend that for any film source (I.e. DVDs, Blu Ray, movie programming) that the user tune the Auto Motion Plus (120hz) processing to OFF position. Otherwise, images may seem to look as if they are cardboard cutouts and all of the techniques the studios use to create realism in movies is removed. Watching movies with the 120hz processing on will reveal cheap movie sets in the background and will give the movie a kitchy non-realistic feel that is quite a turnoff. You will see detail in unintended areas. And picture depth will disappear entirely. Once the 120hz processing is turned off, the picture returns to an excellent experience with superb detail – yet not in unintended areas. The one drawback is that motion lag will be worse once the 120hz processing is turned off. It's a tradeoff you will want. Viewing the recent Blue Ray release of Iron Man was pleasurable in many ways. Blacks were excellent for an LCD and color rendition was spot on even in flesh tones. And there was more crisp definition than one could ask for in the suite of armor. This movie has lots of action and fast motion and panning side to side - all of which produced considerable motion lag jerkiness.

We only recommend the 120hz processing be turned on for sports programming. See directions on how to turn this function on or off below in the remote/menu function section.

This TV is fairly dark for an LCD, but the black levels really shine.

HQV Processor Testing: We tested the Samsung with the Auto Motion Plus feature (120hz) on. With HD signals there was little to no background noise. During video resolution loss testing the LCDs processor performed superbly. Diagonal Filter tests also yielded excellent processing showing little to no jaggies on the horizontal moving bar test. This Samsung has a stellar video processor. The only drawback was during the film resolution loss test, there was slight distortion in the upper right quadrant block of the test screen.

Black Level: Honest black levels characterize this LCD TV. Black levels appear pretty natural due to the transparent plexiglass outer screen (as opposed to an antiglare screen). The black levels are not plasma like but are very good for an LCD.

Dark Shadow Detail: Blacks can get slightly oversaturated at times blotting out detail – especially with some HD content. Overall, though we liked the tradeoff with dark matter detailing still solid.

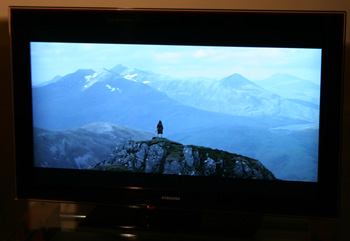

Colors appeared natural and accurate (post calibration)
with several of our review DVDs

Color Rendition/Color Accuracy: Colors appeared natural and accurate (post calibration) with several of our review DVDs, blues in the mountain scenes and flesh tones on Mel Gibson's face in Braveheart.

Viewing Angle/Off Axis Viewing: Off angle viewing was very good on this LCD. Contrast doesn't begin to degrade until around 120 degrees at side angles – an excellent result. This is due in part to the non-antiglare transparent gloss screen used with this LCD TV as well as the quality of the LCD panel.

Motion Lag: There was motion lag and jerkiness evident in our Dolby Digital test Blu Ray DVD.

Exceptions: Turn the 120Hz processing OFF when watching film and show content. The screen does throw off a lot of glare on this TV especially for an LCD.

Note: For this reviews purposes, I have not subtracted points for the LCDs glare issues since lighting conditions can be controlled. If you have a brightly lit room or background lighting you will want to take this into account.

OTHER CONSIDERATIONS RATING: 90/100

Video Aspect Ratio Sizing: Aspect ratio processing and sizing was spot on non-distorted from a variety of input sources. Selection is 16:9, 4:3, Zoom 1, 2, 3.

Inputs: 3 HDMI inputs, 2 component, one 15 pin D sub (for computer) and a USB port round out a generous supply of input compatibility.

Aesthetic Considerations: The LN46A750 is quite attractive if not a bit cheap feeling. It doesnt have the weight that it's previously reviewed brother plasma has. The back panel is made of thin plastic. The plexi overscreen coat is also a little cheap feeling. The Touch of Color accenting is nice yielding that subtle red tone.

The bezel frame of the LCD is too hefty for me at 3" in width on the sides and 2.75" on top and bottom. It's glare can detract from the picture as well.

The gloss black remote shows fingerprints too readily

Remote Control/Menu Functionality: The menu on the LN46A750 is slick looking- transparent but the navigation is not swift. The scrolling wheel on the remote is slow to use and a little awkward. Another negative here is the gloss black remote which shows fingerprints too readily. The remote is backlit but does not have an aspect ratio button on the interface. The source button controls input selection.

To get to the Auto Motion Plus (120Hz) setting go to Picture, then scroll down to Picture Options, then scroll down to Auto Motion Plus where you can turn it On or Off using the side arrow keys.

Audio Output: Audio output was excellent from our Dolby Digital Test disc. Volume level was plentiful and sound rich and full at just 35% of capacity. Virtual Surround sound effects also impressed us from the 10W X 10W speakers.

Features: Adding to the large increases in features and functionality of the 650 series is the 750 series. Upgraded features in this LCD television take network and multi media capability to a higher level. The LCD is MPEG and JPEG compatible using USB 2.0. The LN46A750 LCD series also boasts a Home Viewing Gallery or MPEG3, an internal flash memory with premium content as well as enhanced audio technology through an integrated woofer design. Users can now connect and utilize the data stored in a variety of digital devices, turning their HDTV into a media hub.

VALUE RATING: 88/100

For $2000 this 46" HD LCD packs a lot of punch. It is near the top of Samsung's lineup for 2008 (the LN46A850 is highest). Price wise, the unit is compatible with Sharp's LC-46D85U, though it is several hundred dollars more than LG's 47LG70. Given its positive features 120hz processing (use for sports only), Touch of Color styling, excellent black levels and viewing angle vs. its negatives motion lag, glare from the screen (from any lighting behind the viewer), large bezel (frame) I put it priced very fairly in a crowded field of entry's. This LCD's strongest point is not its price.

OVERALL RATING: 91/100

Rating scale from 70 (denoting poorest quality) to 100 (signifying the very best quality). A rating in the 60s for any particular category of a product review indicates a serious defect which causes the product not to operate properly. Picture quality is double-weighted in the Overall Rating Score calculation.

Review Equipment Used: Sony Blu Ray BDP-S1 High Definition DVD player, Sony DVP-S50 DVD player, JVC HM-DH40000U HD Video Cassete player, Sencore Color Pro 5000, Sencore Auto Cal Pro, Sencore signal generator.
